High Security X Ray Baggage Scanner / X Ray Baggage Inspection System SF 100100

Brand Name : Uniqscan

Model Number : SF100100

Certification : CE ISO

Place of Origin : China

MOQ : 1 UNIT

Price : negotiation

Payment Terms : T/T

Supply Ability : 100sets per month

Delivery Time : in one week

Packaging Details : Wooden box

Product Name : x ray cargo scanner

Conveyor Speed : 0.22m/s

Power wastage : 1.0 KW (Max)

Tunnel Size : 1000 (W) ×1000(H) mm

Conveyor Max Load : 250kg

Wire Resolution : 38AWG

Steel Penetration : 38mm

Single inspection dosage : <1.6μGy

Contact Now

High Security X Ray Baggage Scanners Inspection Equipment SF100100

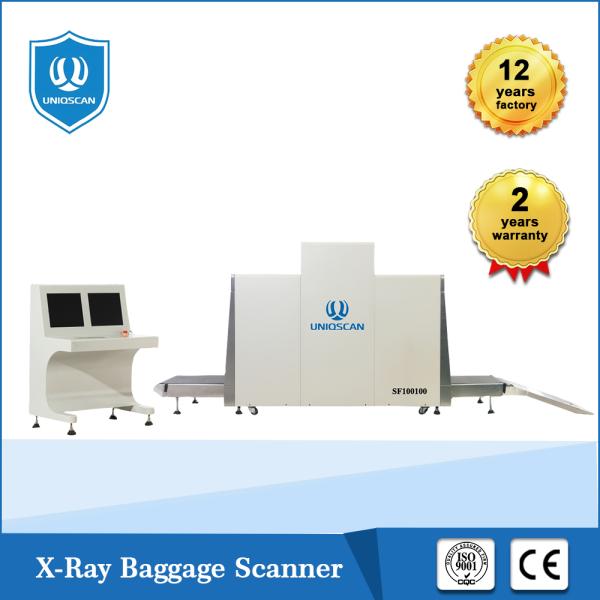

Product Picture

High Security X Ray Baggage Scanner / X Ray Baggage Inspection System SF 100100

Beam direction Downward
Beam angle 80 degree
Anode voltage 70-160kv (adjustable)
Anode power 0.4-1.0mA(adjustable)
Cooling / Duty Cycle Oil Cooling /100%

General specification:

Tunnel Size 1000(W)*1000(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 250kg
Dose per Inspection <1.6Gy/h
Resolution 38AWG
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm , Vertical: Dial1.0mm
Penetrate resolution 38mm
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.2μ Gy/h (at a distance of 5cm From external housing)

Packing and Shipment:

Packing details carton packing
1 set/ctn , 2 wooden
Packing Size: (L)2800*1450*2080mm & 1440*1250*710mm
Gross Weight:1200 KG
Payment terms T/T, Western Union, Cash,L/C
Shipping methods By air (5-7days, most expensive)
By express (3-7days, more expensive)

By sea (15-28days, cheapest)

X Ray Image:

X-ray Sensor L-Shaped Photodiode Array (multi-energetic), 24bit Deep
Monitor High Resolution Color, LCD Accord, 19 inch
Image Processing

Edge enhancement, image strengthening, image lightening,

reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 100000 pictures in real time
Zoom 2, 4, 8, 16,32,64 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder

Installation Data:

  1. Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  2. Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  3. Operation Power: 220VAC(± 10%)50± 3Hz
  4. Power Consumption: 1.0 KW (max), 0.7KW(working)
  5. Noise: <58dB.

Computer Specs:

  1. CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB
  2. Motherboards: Intel G41/Nvidia chip set, 7025 or better on OEM motherboard
  3. Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1 and 1PCI BX press *16
  4. Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots.
  5. Hard Disk drive: 500GB 7200 rpm serial ATA HDD.
  6. Mouse: Optical

Advantages:

  • We have 20000 square meter factory, 4 floor, 260 employess and 5 R&D team
  • We have passed ISO9001, 16001, OHSMS18001, Health Inspection
  • We have full security product line which can meet your different needs
  • We never stop researching and will have one or two new product each year
  • We listen to our customer and solve their problems

Our service:

  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.

Certification:

  1. CE Certificate
  2. ISO9001 Certificate
  3. ISO14001 Certificate
  4. Radiation Safety Certificate From Chinese Government
  5. Test Report From Inspection Center Of State Security Ministry

Applications:

End user Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals SF6040; SF6550; SF10080; SF100100
Factories (to find needle in clothing, shoes, bags), SF5030; SF6040; SF6550
Courthouses, Embassies, Buildings SF5030; SF6040; SF6550
Military installations SF5030;SF6040; SF6550; SF8065; SF100100
Prisons, Hotels, Schools, Convention centers SF5030; SF6040; SF6550; SF10080
Security checkpoints,Special events location SF5030; SF6040; SF6550; SF8065; SF10080

Shipping and Packing:

High Security X Ray Baggage Scanner / X Ray Baggage Inspection System SF 100100
